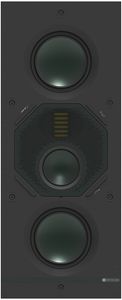

Monitor Audio Creator Series 5" Matte Black In-Wall Speaker


Model #:

CSW3M

Model #: CSW3M
1463148
Monitor Audio
$1,600.00

At a Glance

This high-performance, medium-sized Tier 3 in-wall loudspeaker is a three-way model featuring two RDT III bass drivers, a C-CAM mid-range driver and MPD II transducer. It has a cut-out dimension of 527 x 198 mm and revolutionary patented Quik-Link speaker cable connector and Tri-Grip II.Read More

$1,600.00

Get to know this product.

Product Overview

Product Overview

This high-performance, large Tier 3 in-wall loudspeaker is designed to deliver pristine, engaging acoustics where pristine sound quality is desired. It is a three-way model based on the Platinum Series 3G, and features the very latest acoustic technologies from Monitor Audio. This includes an MPD II high-frequency transducer, developed for the THX Certified Ultra Cinergy range. The precision specification of the Micro Pleated Diaphragm technology is designed to produce accurate, lifelike sound without any distortion. This is coupled with a C-CAM midrange driver and two RDT III bass drivers.

This combination ensures levels of acoustic transparency and detail found in Monitor Audio’s premium loudspeaker ranges, where much of his acoustic technology was developed. This really is the last word in installed performance.

It has a cut out dimension of 527 x 198 mm and uses the patented Quik-Link speaker cable connecter, which revolutionizes the ease and speed of speaker installation. Tri-Grip has also been evolved for simple, reliable and strong fitment.

Key Features

Ideal for installations where high-performance acoustics are desired

Three-way design

1 x MPD II transducer for breathtakingly precise high-frequency performance

1 x 3" (76 mm) C-CAM midrange driver

2 x 5" (127 mm) RDT III bass drivers for full bass

Patented Quik-Link speaker cable connector for quicker installation (UK patent application no. 2216966.8)

Tri-Grip II for easy and secure fitment

Useful Documents
Specifications

General Specs

Cut Out Depth3.38
Cut Out Width7.81
Cut Out Height20.75
Speaker Depth (in.)3.56
Speaker Width (in.)9.13
Speaker Height (in.)22.06
Speaker Weight (lbs)10.38
Frequency Response45 Hz – 60 kHz
Color Finish NameMatte Black
Manufacturer WarrantyLimited Lifetime
CollectionCreator Series
Max Sound Level Db122
RMS Power Handling (Watts)150
Impedance6 ohms
Number of Speakers1
Sensitivity88
Speaker TypeIn-Wall Speakers
WarningProposition 65 Warning for California Residents
