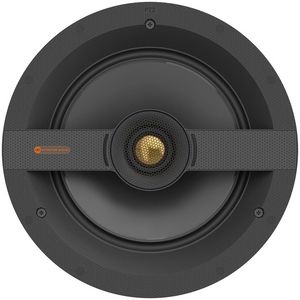

This large Tier 1 in-ceiling loudspeaker is a two-way model featuring a C-CAM mid-bass driver and C-CAM tweeter. It has a cut-out dimension of 248 mm and revolutionary patented Quik-Link speaker cable connector and Tri-Grip II for quick, simple, reliable and strong installation and fitting.Read More
This large Tier 1 in-ceiling loudspeaker is designed for cost-effective installations, where product simplicity and solid acoustic performance is required. It is a two-way model featuring a C-CAM mid-bass driver and C-CAM tweeter. The performance benefit of having both within a single design means greatly improved clarity, wider dispersion into the listening environment, and clear lifelike high-fidelity sound – of the quality you’d expect from any Monitor Audio passive box loudspeaker. It has a cut-out dimension of 248 mm and uses the patented Quik-Link speaker cable connecter, which revolutionises the ease and speed of speaker installation. Tri-Grip has also been evolved for simple, reliable and strong fitment.
Ideal for cost-effective installations, where product simplicity and solid acoustic performance is required
Two-way design
1 x 1.25" (32 mm) C-CAM tweeter with UD Waveguide I for lifelike sound
1 x 9" (229 mm) C-CAM mid-bass driver for clear mid-range and full bass
Patented Quik-Link speaker cable connector for quicker installation (UK patent application no. 2216966.8)
Tri-Grip II for easy and secure fitment
General Specs | |
Cut Out Depth | 3.88 |
Cut Out Width | 9.75 |
Cut Out Height | 9.75 |
Speaker Depth (in.) | 4.25 |
Speaker Width (in.) | 10.94 |
Speaker Height (in.) | 10.94 |
Speaker Weight (lbs) | 5.5 |
Frequency Response | 30 Hz – 25 kHz |
Color Finish Name | Matte Black |
Manufacturer Warranty | Limited Lifetime |
Collection | Creator Series |
Max Sound Level Db | 116 |
RMS Power Handling (Watts) | 75 |
Impedance | 8 ohms |
Number of Speakers | 1 |
Sensitivity | 88 |
Speaker Type | In-Ceiling Speakers |
