The CSS230 is a brilliantly innovative back-box design with an impressively shallow 50 mm (2") mounting depth, custom built to offer hi-fi levels of performance in spaces where no high quality speaker has gone before.Read More
Between 2" stud frames or where pipework or cabling reduces mounting depth, the hybrid back-box construction and proprietary full-range driver array combine to deliver consistent audio quality with exceptional installation versatility.
The hybrid back-box provides the best of all worlds for installer and customer. Combined, the three proprietary 3" mid-bass units achieve the bass output of a 6 1/2" driver, all from a super-stealthy flush-fitted profile.
In keeping with Monitor Audio’s renowned design rigour, the crossover comprises high quality film capacitors and low loss inductors - selected for signal integrity - ensuring peerless audio detail and dynamics from a speaker of its size and application. When the CSS230 is in ‘ported’ mode, a fine gauze protects the acoustic system from dust ingress.
Optional square or premium grille can be used with this model.
Super-slim mounting depth 50 mm (2") designed to fit within 2” stud walls or where space is restricted
Hybrid CP ‘Controlled Performance’ style, enclosed or open back-box option provides flexible high performance options and sound isolation in one (pictured right)

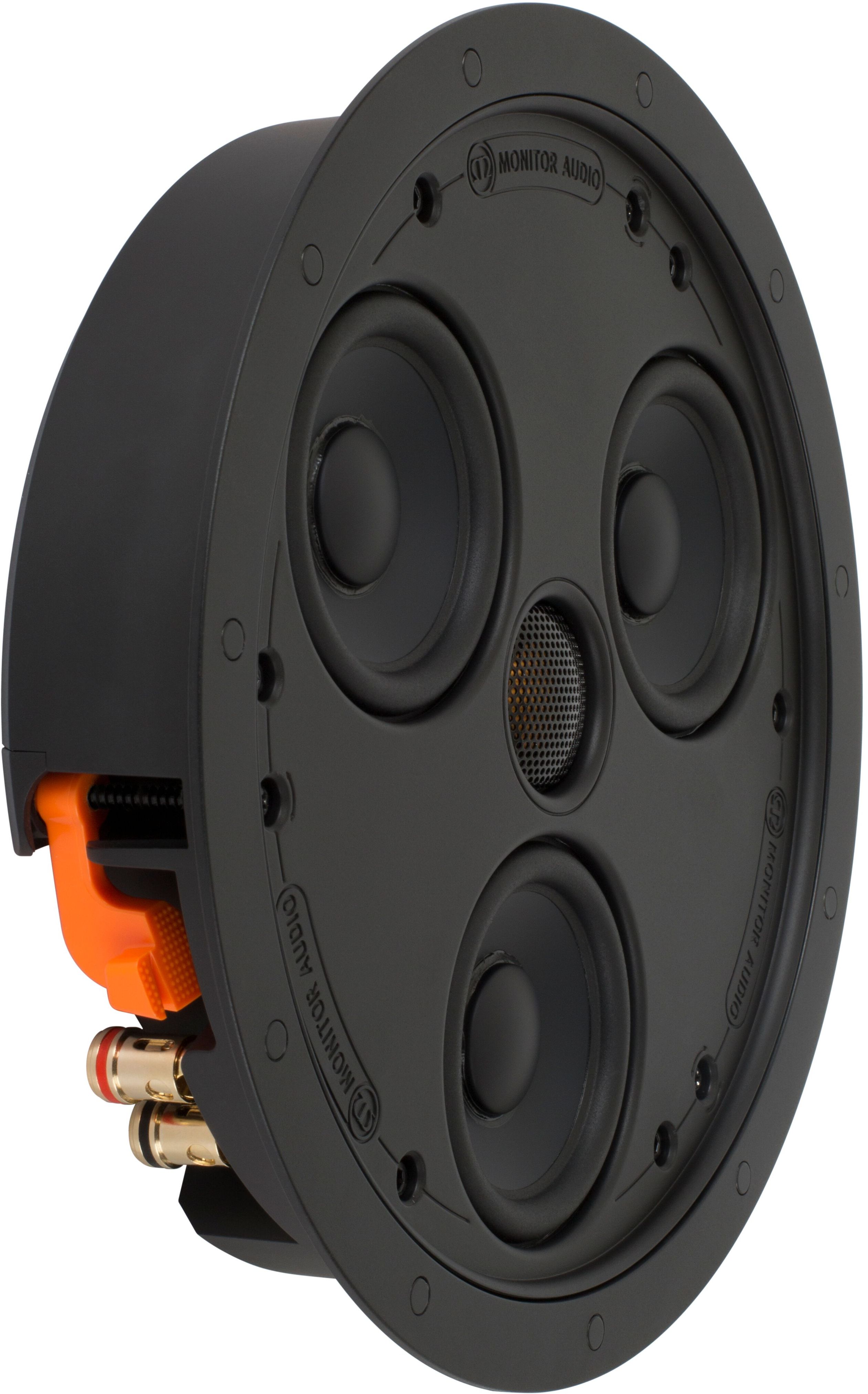

Driver configuration of three 3" C-CAM bass/mid-range drivers in a radial array around a 19 mm C-CAM Gold Dome tweeter (fixed position) and high quality crossover design offers Monitor Audio’s award-winning signature sound quality
Gold plated sprung push terminals are reliable and easy to connect
Magnetically attached ‘Trim-less’ round and square grille options for discreet, reliable and easy servicing, flexible in-wall/ceiling installation, paintable to blend with décor
Patented Tri-Grip dog leg fixings – Reliable, robust and quick to install
Existing CB6 pre-construction bracket for easier system design and planning
This product is now available to use with home theatre design software, The CEDIA Designer.
General Specs | |
| Product Weight (lbs.) | 6.31 |
| Frequency Response | 100 Hz – 30 kHz |
| Manufacturer Warranty | Limited Lifetime |
| RMS Power Handling (Watts) | 40 |
| Color | Black |
| Impedance | 8 ohms |
| Maximum Power Handling (Watts) | 40 |
| Number of Speakers | 1 |
| Sensitivity | 86 |
| Speaker Type | In-Ceiling Speakers |
Additional Specifications | |
| Frequency Response (-6 dB) | 100 Hz – 30 kHz sealed ‘CP’ (85 Hz – 30 kHz –open back) |
| Nominal Impedance | 8 ohms |
| Sensitivity (1W@1M) | 86 dB |
| Maximum SPL | 103.8 dBA |
| Power Handling (RMS) | 40 Watts – Full range (60 watts with crossover set to 100 Hz @ 12 dB/Octave) |
| Recommended Amplifier Requirements | 10 - 60 W |
| Drive Unit Complement | 3 x 3" C-CAM cone bass-mid drivers, 1 x 19 mm (3/4") C-CAM Gold Dome tweeter |
| Crossover Recommendation | 100 Hz at a minimum of 12 dB/Octave (24 dB/Octave optimum) |
| Connection | Gold Plated Sprung push terminals – for bare wire connection up to 4 mm(2) |
| Overall Diameter (Including Grille) | 250 mm (9 13/16") |
| Overall Depth (Including Grille) | 54 mm (2 1/8") |
| Cut-Out Hole Diameter | 211 mm (8 1/4") |
| Mounting Depth | 50 mm (2") |
| Optional Square Grille - Outer Dimensions | 249 x 249 mm (9 3/16") |
| Fixing Type | 3 position Tri-Grip dog leg fixings |
| Construction Material | ABS (UL94 rated, RoHS2 Compliant) – Painted steel grille |
| Weight | 2.88 kg (6 lb 5 oz) |
| Pre-Construction Bracket | CB6 Pre-Construction Bracket (Purple) |
