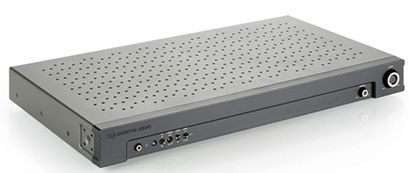

Monitor Audio IWA-250 Amplifier

Monitor Audio

Model #:

IWA250

Model #: IWA250
253449
Monitor Audio
$720.00

At a Glance

Product Dimensions 1.72"h x 17.01"w x 10.36"d

The IWA-250 switch mode amplifier is a slim, powerful dedicated design in a heavy-duty 1U rack mount case. Delivering up to 250 watts into 4 ohms, a single IWA-250 will power single or dual IWS-10's to provide higher power levels for larger rooms or to meet customer demands.Read More

$720.00

Get to know this product.

Product Overview

Product Overview
Technology

Rigid, high quality steel case

Switch mode power supply

Class D power amplifier delivering up to 250 watts into 4 ohms (dual IWS-10 drivers)

High efficiency design resulting in cool running – low thermal output

DSP controlled with advanced limiters

<0.5watt standby power consumption (ErP certified)

DC short circuit protection, over-current and thermal protection

Useful Documents
Manual
Brochure
Product Guide
Specifications

General Specs

Depth (in.)10.36
Height (in.)1.72
Impedance4 Ohms
Width (in.)17.01
Analog Audio(RCA) Input1
Manufacturer Warranty5 Year
Headset JackYes
Product Weight (lbs.)10
ColorGray

General

System FormatActive sub-woofer amplifier
Lower Frequency Limit25 Hz
Upper Frequency LimitVariable 40 – 120 Hz @ 24 dB/Octave
Amplifier Output250 W @ < 1% THD+N
Drive Unit Complement4 - 8 ohms
Amplifier ClassificationClass D amplifier with Switch mode power supply (SMPSU)
Cabinet SupportFor use when using the dedicated back box
EQMusic/ Movie/ Impact
Phase Control0 & 180 degrees
Auto SensingLine Level > 3.5mV
Input Level RequirementsStandby after approximately 15 minutes if no signal sensed
Input Impedance> 20K Ohms
Mains Input VoltageAC 110 - 120 V ~ 50/60Hz AC 220 - 240 V ~ 50/60Hz (Factory Region Preset)
Dimensions (H x W x D)43.7 x 432 x 263 mm (1.75 x 17 x 10.38)
ConnectionLFE in (Stereo RCA and Balanced), 12v; Trigger in (3.5 mm mono mini-jack), left and right speaker output
Trigger Input5 - 12v via 3.5 mm mono mini-jack socket
Power ConsumptionStandby: < 0.5 W (ErP approved); Typical Idle: < 10 W Max Rated: 200 W
Weight (unpacked)4 kg (8 lb 12 oz)
WarningProposition 65 Warning for California Residents
