The IWS-10 is specified to produce excellent bass quality in a range of wall, ceiling, even floor locations, ideally but not exclusively with its IWB-10 back box.Read More

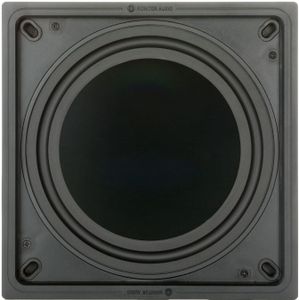

The IWS-10 subwoofer driver employs a rigid, flat 10” surface of 10 mm (3/8") RDT material derived from Monitor audio’s acclaimed ‘Platinum’ series of high-end speakers. A large vented pole helps to move air quickly, reducing power compression and increasing heat dissipation.
It features Monitor Audio’s patented Tri-Grip clamping system
Paintable trim-less grille and frame edge
Flat 10” surface of 10 mm (3/8") RDT material
This product is now available to use with home theatre design software, The CEDIA Designer.
General Specs | |
| Product Weight (lbs.) | 8.38 |
| Color | Black |
| Speaker Type | Powered Subwoofers |
| Maximum Power Handling (Watts) | 150 |
| Frequency Response | 28 Hz — 120 Hz |
| Manufacturer Warranty | Limited Lifetime |
| RMS Power Handling (Watts) | 150 |
Additional Specification | |
| Frequency Response | 28 Hz — 120 Hz (when mounted in optimum enclosure) |
| Nominal Impedance | 8 ohms |
| Sensitivity (1W@1M) | 86 dB |
| Maximum SPL | Single unit 109.8 dB; Pair 115.8 dB |
| Power Handling (RMS) | 150 W |
| Cut-Out Dimensions | 280 x 280 mm (11 x 11") |
| Mounting Depth | 89.98 mm (3 1/2") |
| Fixing Type | 4 position Tri-Grip dog leg fixings |
| Connection | Gold plated "push" type terminals |
| Construction Material | Mineral Filled ABS Plastic (RoHS2 Compliant) |
| Overall Dimensions (H x W x D) | 302 x 302 x 92.28 mm (11 7/8 x 11 7/8 x 3 5/8") |
| Overall Dimensions (Including Grille (H x W x D)) | 314.21 x 314.21 x 100.78 mm (12 3/8 x 12 3/8 x 3 15/16") |
| Weight | 3.8 kg (8 lb 6 oz) |
