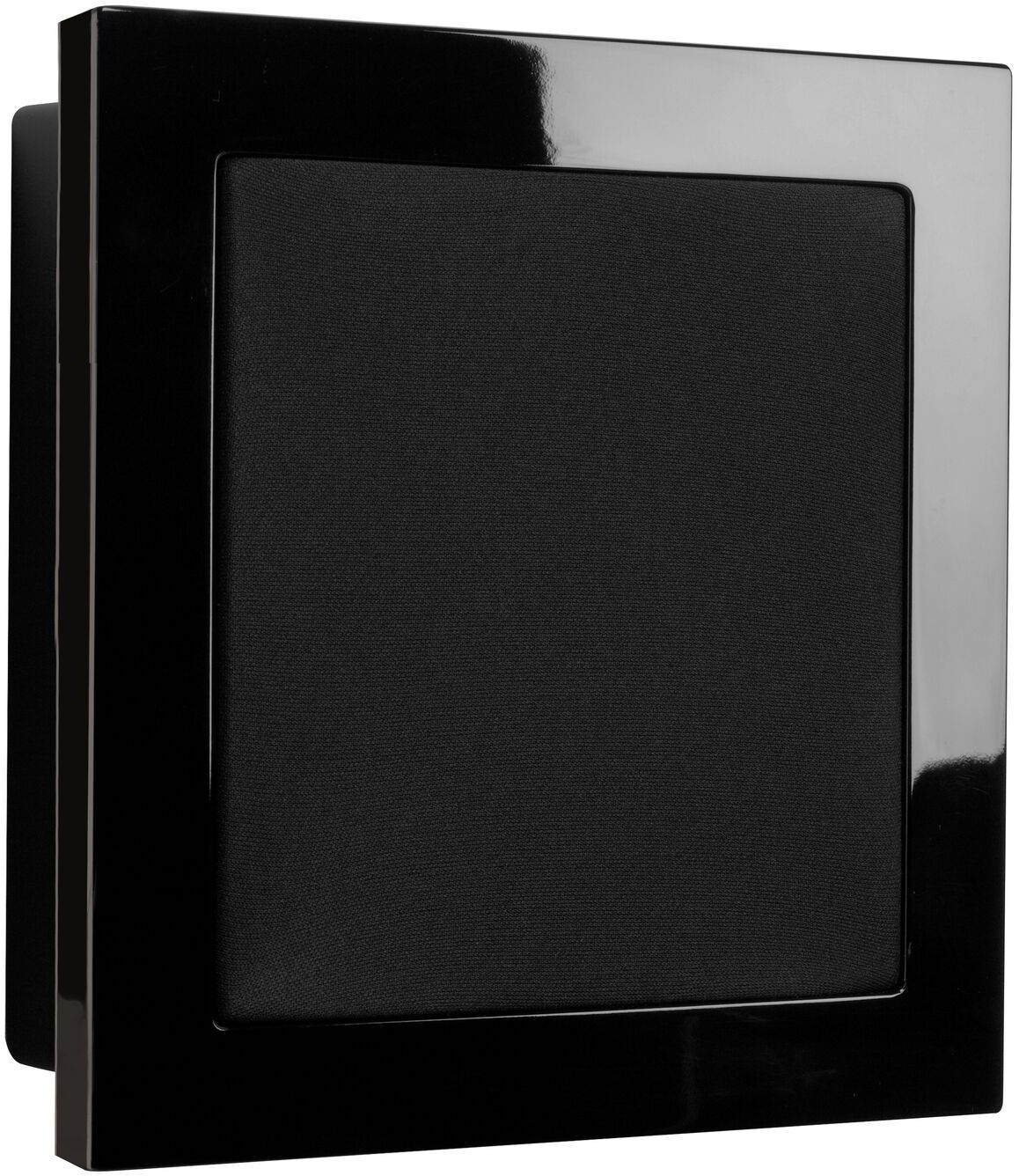

Monitor Audio SoundFrame 3 Gloss Black In-Wall Speaker

Monitor Audio

Model #:

SFIW3B

Model #: SFIW3B
272125
Monitor Audio
$500.00

At a Glance

Product Dimensions 11.88"h x 11.88"w x 3.06"d

The SoundFrame series consists of three sizes of speakers that complement any room. SoundFrame 3 In-Wall is the most compact speaker of the three and it can be used on its own, as a rear to complement the SoundFrame 1 In-Wall and SoundFrame 2 In-Wall, or with a sub-woofer.Read More

$500.00

Color Finish Name:Gloss Black

$500.00
$500.00

Get to know this product.

Product Overview

Product Overview

Individual images for the grille cloths can be selected from our library or bespoke speakers can be created using your own high resolution photographs. The cabinet frames are available in high gloss white and high gloss black lacquer.

The SoundFrames can be fitted either in-wall or on-wall and with or without a frame using the Frameless grilles option.

The SoundFrame 3 In-Wall has a 2-way configuration with a pivoting 1-inch tweeter module and a 4-inch C-CAM driver.

Quick and easy installation.

Slender 87 mm (3.5") cabinet depth.

Choice of high gloss white or black lacquer frames.

SoundFrame 3: 2-way configuration: a pivoting 1 inch tweeter module with a 4-inch C-CAM driver.

High frequency attenuation +- 3 dB.

Ultra-discreet on-wall/in-wall AV/audio system, suitable for any interior.

This product is now available to use with home theatre design software, The CEDIA Designer.

Useful Documents
Warranty
Brochure
Installation Instructions
Safety Instructions
Product Guide
Specifications

General Specs

Product Weight (lbs.)6.6
Frequency Response75 Hz — 35 kHz
Color Finish NameGloss Black
Manufacturer WarrantyLimited Lifetime
RMS Power Handling (Watts)50
ColorBlack
Impedance8 ohms
Maximum Power Handling (Watts)50
Number of Speakers1
Sensitivity86
Depth (in.)3.06
Height (in.)11.88
Width (in.)11.88

Additional Specifications

Frequency Response75 Hz — 35 kHz
Sensitivity (1W@1M)86 dB
System Configuration2-Way
Drive Unit Complement1 x 4" C-CAM mid-range driver, 1 x 1" pivoting Gold Dome tweeter
Power Handling (RMS)50 W
Maximum SPL102.5 dBA
Recommended Amplifier Requirements25 — 50 W
Bass AlignmentPorted Box
Nominal Impedance8 ohms
Crossover Frequency3.2 kHz
Dimensions (Including Frame (H x W x D))301.5 x 301.5 x 77.5 mm (11 7/8 x 11 7/8 x 3 1/16")
Cut-Out Dimensions251 x 251 x 59.5 mm (9 7/8 x 9 7/8 x 2 5/16")
Depth From Wall18 mm (3/4")
Weight (packaged)3 kg (6.6 lbs)
